    Small Tolerance Precision Locating Pins Round Head Internal Threaded Type

    Ask Lasest Price
    Brand Name : JESENTECH
    Model Number : custom service
    Certification : IATF16949:2016
    Price : Negotiated price
    Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal
    Supply Ability : 1500000 pieces/Month
    Delivery Time : 3-10days
    MOQ : NONE
    • Product Details
    • Company Profile

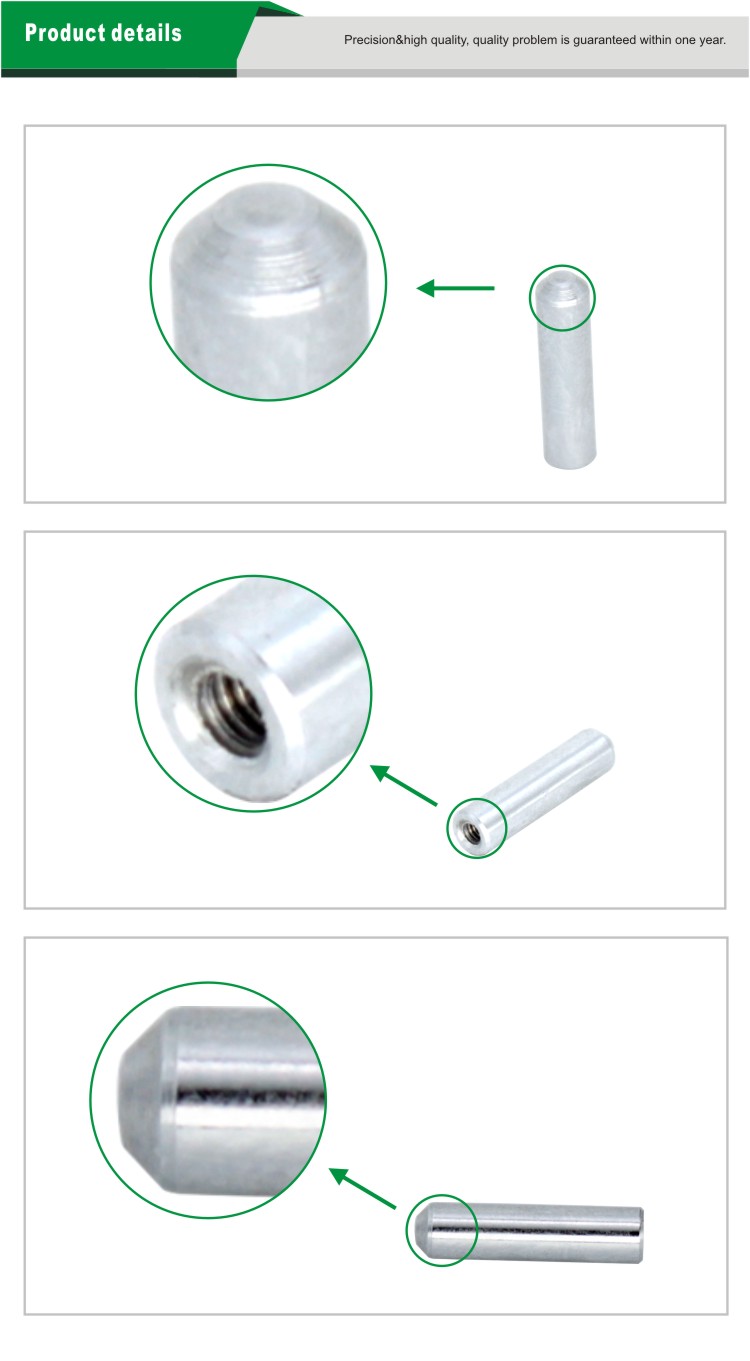

    Small Tolerance Precision Locating Pins Round Head Internal Threaded Type

    Small tolerance of 304 Stainless Steel Round head internal thread type Locating Pins for Injection mold making

    Introduction:

    One of the most common ways of workholding is by location with reference to an external surface. This is also known as locating to a datum surface. Flat surfaces are commonly used for locating. However, there can be various types of locators depending on the application.

    Locating Pin Method:

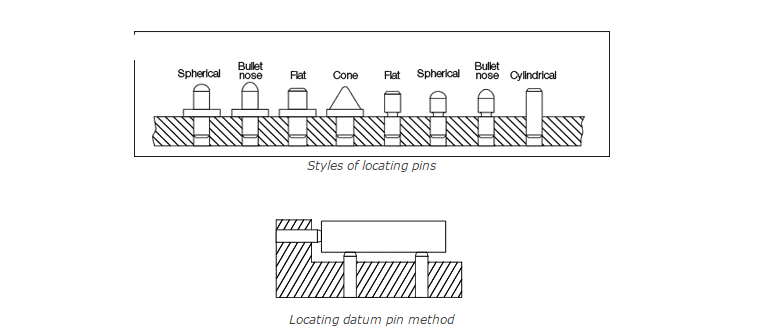

    The most common method used for locating is with the help of locating pins. Locating pins are available in a variety of standard sizes and shapes depending on the application they are to be used in. For example a “diamond” head pin is used as a feature to help with the locating operation in situations with machining inaccuracies while a flat face with chamfered head style pin is used in applications with short strokes. The different kinds of pins available can be seen in the figure below.
