    303 Stainless Steel Dowel Pins , Step Round Head Outside Screw Type Dowel Locator Pins

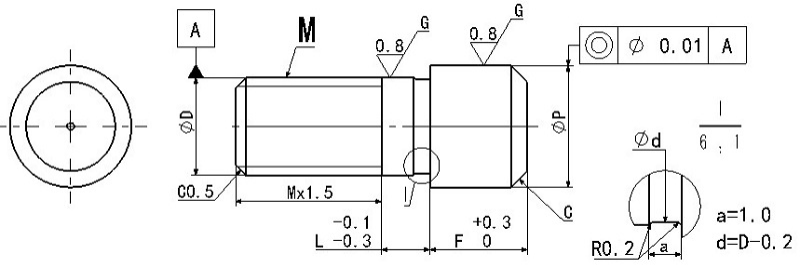

    SUS303 Stainless Steel Step round head outside screw type locating Pins for Fixture and measuring tool


    Introduction of Locating Pins:

    There are dozens of styles of locating pins that can be utilized in a design. We will explain the structure and show an example of how each style can be applied. One of the most common pins is a stepped pin with either small or large head.

    Typically, locating pins are used for controlled, fine tolerance positioning of a work piece. For example, a pallet that is moved along one axis, where the drive mechanism is not accurate and stable enough to place it in a position sufficiently accurate to execute a particular process, the use of locating pins may be the best solution. Usually two locating pins are enough to properly locate the work piece on one plane.



    D Or PD,P Tolerance selection
    MPGHS
    m6p6g6h7/
    1.50-3.00+0.008
    +0.002
    +0.012
    +0.006
    -0.002
    -0.008
    0
    -0.010
    0
    -0.01
    3.01-6.00+0.012
    +0.004
    +0.02
    +0.012
    -0.004
    -0.012
    0
    -0.012
    6.01-10.00+0.015
    +0.006
    +0.024
    +0.015
    -0.005
    -0.014
    0
    -0.015
    10.01-18.00+0.018
    +0.007
    +0.029
    +0.018
    -0.006
    -0.017
    0
    -0.018
    18.01-30.00+0.021
    +0.008
    +0.035
    +0.022
    -0.007
    -0.020
    0
    -0.021
