    Injection Mold Use 304 316 Stainless Steel Fasteners With Nut Accessory

    Ask Lasest Price
    Brand Name : JESENTECH
    Model Number : customized
    Certification : IATF 16949:2016
    Price : Negotiated price
    Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal
    Supply Ability : 3800000 pieces/Month
    Delivery Time : 3-5 days
    MOQ : 1-5 Pieces
    • Product Details
    • Company Profile

    Injection Mold Use 304 316 Stainless Steel Fasteners With Nut Accessory

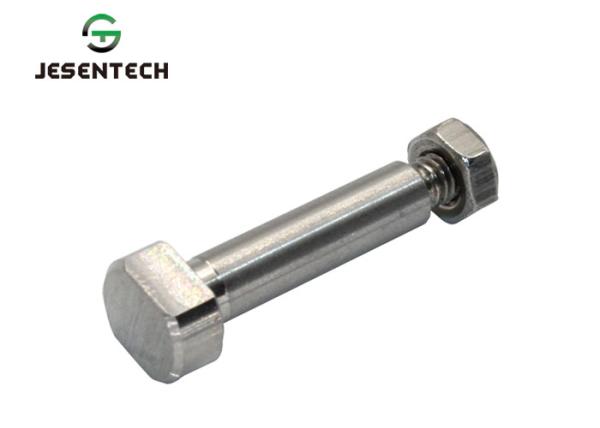

    Custom made SUS304 / 316 stainless steel hinge pin with nut accessory for injection molding

    Hinge pin

    is a kind of standardized fasteners, which can be static fixed connection, can also be connected with the relative movement, mainly used for the hinge of two parts, usually form hinge pin lock with cotter pin, reliable work, easy to disassemble.

    the pin plays an important role in the connection of mechanical parts.According to the different shapes and functions, can be divided into: cotter pin, taper pin, cylindrical pin, groove pin, etc.In 1986, China adopted ISO fastener product standard for the first time and issued the national standard.Specific can see selling product standard.In the sale product, the cylinder pin, the cone pin and the split pin are the product fasteners which the production USES the quantity to be broad, also is the irreplaceable fasteners product.

    Pin shaft is a kind of standardized fasteners, which can be static fixed connection, can also be connected with the relative movement, mainly used for two parts of the hinge, forming a hinge connection.Pin shaft is usually locked with cotter pin, reliable work, easy to remove.The international standard for pin shaft is ISO 2341:1986.


    L Size Fixed typeL size Specified typeMaterialHardnessSurface finishAccessory
    standard nutstandard nutU type nutstandard nutlocking nut
    AHTTYAHTFTYAHTFUTYS45C-Iron oxide protective filmSUS304SUS304
    AHTTRYAHTFTRYAHTFUTRY40~45HRC
    AHTSAHTFSAHTFGUSSUS303--
    AHTCRAHTFCRAHTFUCRSUS440C45~50HRC


    L Size Fixed type

    Type

    D (g6)LAWBF(u)nMaccessory nut
    coarse thread
    AHTTY AHTTRY AHTS AHTCR4-0.004
    -0.012
    10 12 14 15 16 18 20 22 24 25 3075363.91.5M3M3X0.5
    59744.9M4M4X0.7
    615 16 18 20 22 24 25 30108595.8M5M5X0.8
    8-0.005
    -0.014
    15 16 18 20 22 24 25 30 35 40 45 5013107.8M6M6X1.0
    1018 20 22 24 25 30 35 40 45 501613129.8M8M8X1.25
    12-0.006
    -0.017
    22 24 25 30 35 40 45 5018141611.8M10M10X1.5

    L size Specified type
    TypeD (g6)L
    designated unit 0.1mm
    AWBF(u)nMaccessory nut
    coarse thread
    Standard nut AHTFTY AHTFTRY AHTFS AHTFCR U type nut AHTFUTY AHTFUTRY AHTFGUS AHTFUCR4-0.004
    -0.012
    5.0~50.075363.91.5M3M3X0.5
    55.0~60.09744.9M4M4X0.7
    610.0~100.0108595.8M5M5X0.8
    8-0.005
    -0.014
    13107.8M6M6X1.0
    101613129.8M8M8X1.25
    12-0.006
    -0.017
    15.0~100.018141612M10M10X1.5
    1520.0~100.024211815M12M12X1.75
    1616
    20-0.007
    -0.020
    272320M16M16X2.0
    25302725
