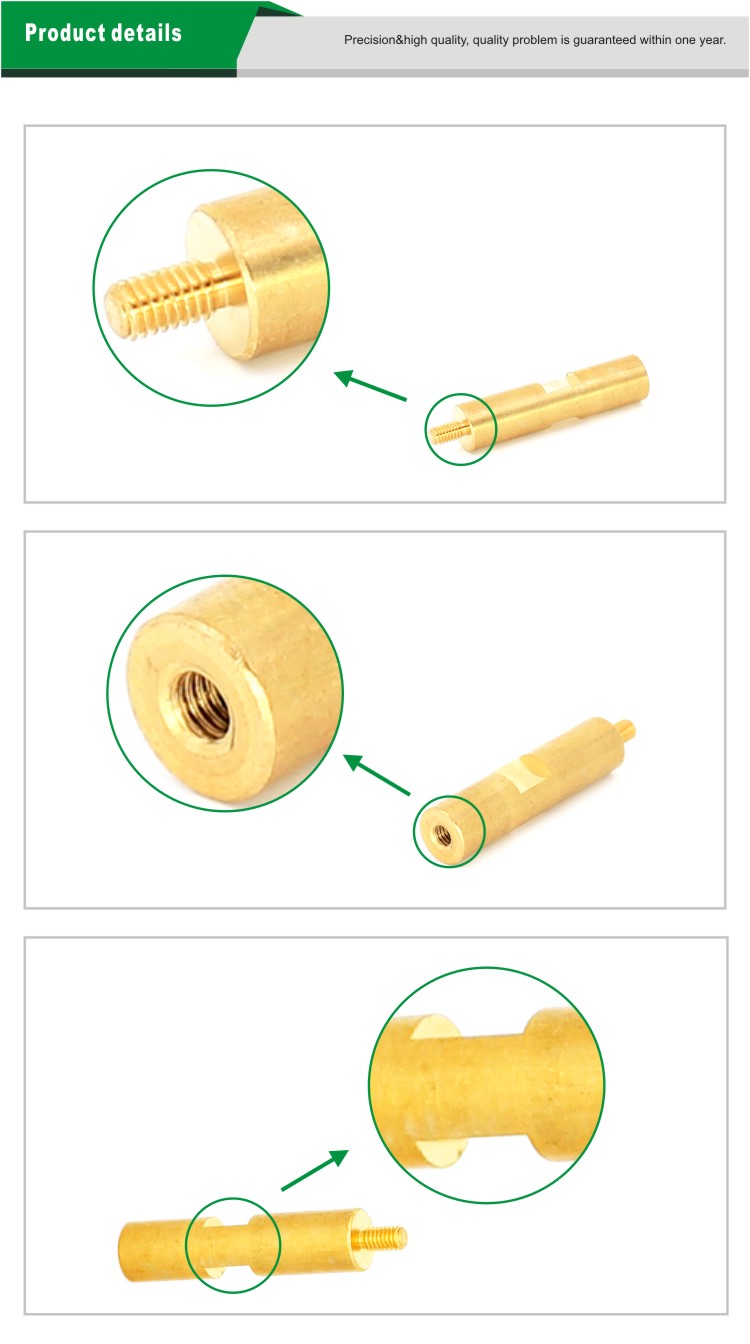

JESENTECH Custom-made Brass material Linear Motion Bearing Shafts by CNC Machined for Synchronous belt wheel

JESENTECH

is a fastener manufacturer that produces and processes non-standard shaped shafts. The cantilever pins produced by our company are mainly used in industrial automation equipment;The cantilever pins produced by our company are produced according to the drawings or samples according to the needs of customers;Really realize the material on-demand customization, product shape design is customized according to customer needs, surface treatment is customized according to customer needs;Customers only need to provide professional tolerance design drawings or samples, we can precisely process the products according to all the customer's dimensional tolerances and precision.

What is a guide shaft?

In the process of linear motion, its main function is to guide.

1. Precision classification of guide shaft

According to its precision, the guide shaft can be divided into two categories: ordinary and precision:

The difference between ordinary and precision grades is the difference between the verticality of the thread and the end face and the datum;The processing equipment and measuring equipment are different.

Perpendicularity: is the position tolerance, represented by the symbol perpendicular.

Definition: the percentage of tolerance that occurs when the theoretical correct Angle is 90 degrees from the datum level, is called the perpendicularity tolerance.The actual shape of the part surface is the variable allowed for its ideal position.

Classification of the use of the guide shaft:
The guide shaft can be divided into a linear guide shaft for linear motion use, a rotary shaft for rotary use, and a bar for use as a support depending on the application.

1. The shaft used for linear motion is shown in the following figure. It is often used together with linear bearings, guide shaft bearings, and oil-free bushings.
Using a linear guide shaft and a linear bearing to form a linear motion mechanism
When used with linear bearings
The guide shaft can be heat treated with g6 #12539;h8 #12539;h5 tolerance.
When used with oil-free bushings
An unheated guide shaft with f8 tolerance can be used.
2. The shaft used for rotating purposes is shown below, mainly with bearings. Suitable for timing pulleys, couplings, etc.

JESENTECH GROUP CORPORATION is a manufacturer of special-shaped shaft fastener R & D and system Made with well-equipped testing facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Automation equipment, robotics, medical treatment, automobiles, marine railways, bridges, buildings, structures, tools, instruments, instruments, etc. and other industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

The products we can produce and process are Locating/Positioning Pins/Cylindrical Pins/Lead/Slide Screw/Bushings/Linear Shafts/Plungers Screws/Screws and Bolts/Nuts/Circular/Hexagon Posts/Washers/Floating Joints/Cantilever shafts/Knurled Knobs/Screws/Air Tool /Quick Couplers etc...

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
