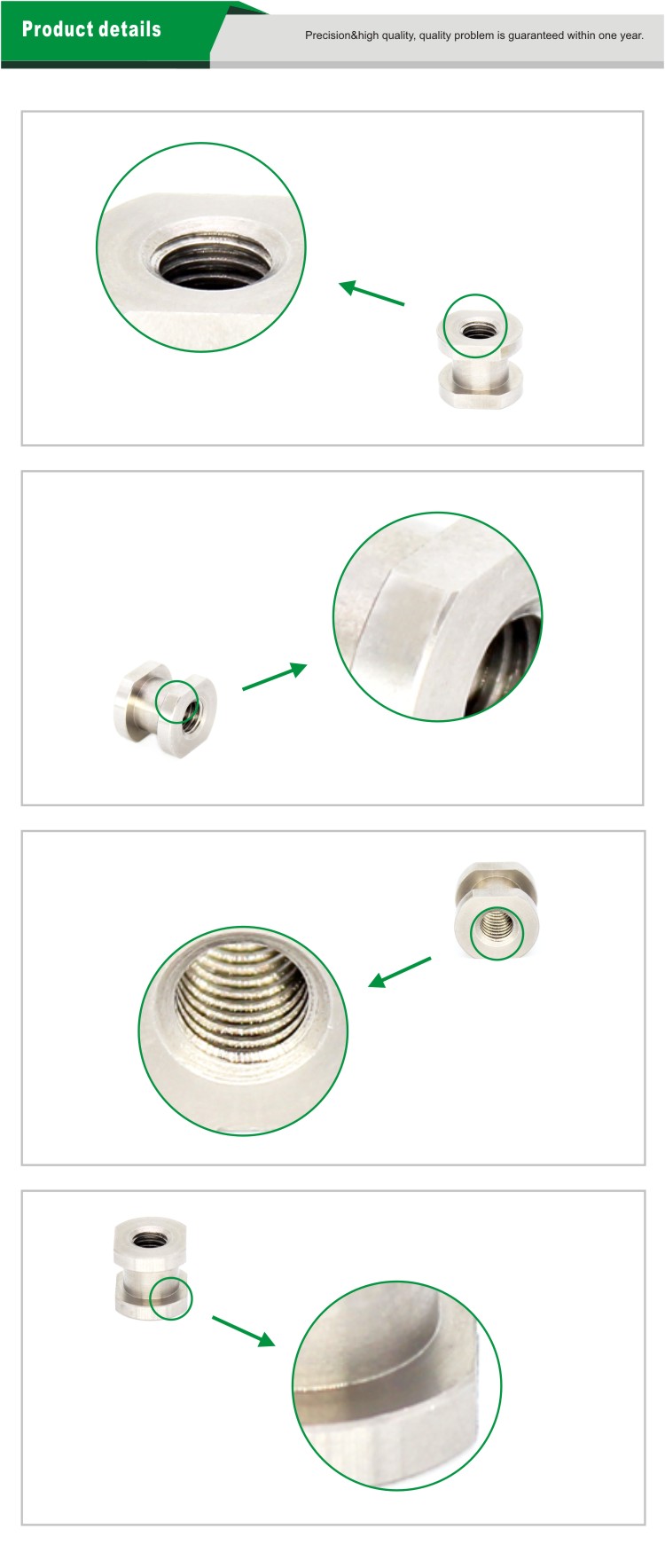

JESENTECH Small tolerance of SS304 floating flange joint for Pneumatic tool manufacturing

The role of the floating joint:
1, easy to install;
2, Eliminate the interference phenomenon caused by the connection error between the two axes;
3, can moderately enlarge the processing precision of the fittings;
4, in line with small volume, high tensile strength, compressive strength requirements;
5, used to eliminate errors, protect related components and make the equipment run smoothly and extend the service life of the equipment;

Working principle of cylinder floating joint:
A cylindrical metal member that guides the piston to linearly reciprocate in the cylinder. Air converts thermal energy into mechanical energy by expansion in the engine cylinders; the gas is compressed by the piston in the compressor cylinder to increase the pressure.
The housing of a turbine, a rotary piston engine or the like is also commonly referred to as a cylinder.
Application areas for cylinders: printing (tension control), semiconductor (spot welder, chip grinding), automation control, robots, etc.

The principle of the floating joint:
If the cylinder diameter is mounted on the object to be moved, "piston rod bending" and "rod seal wear" may occur due to "eccentricity", "poor balance accuracy", etc., to reduce the performance of the cylinder and shorten the use of the cylinder. life.
The floating joint is to solve the problem of eccentricity and make the cylinder move smoothly. The floating joint absorbs the eccentricity and parallel precision of the connecting piece and the cylinder, so that the cylinder and the connecting piece can work within the allowable eccentric range.

JESENTECH GROUP CORPORATION is a manufacturer of special-shaped shaft fastener R & D and system Made with well-equipped testing facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Automation equipment, robotics, medical treatment, automobiles, marine railways, bridges, buildings, structures, tools, instruments, instruments, etc. and other industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

The products we can produce and process are Locating/Positioning Pins/Cylindrical Pins/Lead/Slide Screw/Bushings/Linear Shafts/Plungers Screws/Screws and Bolts/Nuts/Circular/Hexagon Posts/Washers/Floating Joints/Cantilever shafts/Knurled Knobs/Screws/Air Tool /Quick Couplers etc...

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
